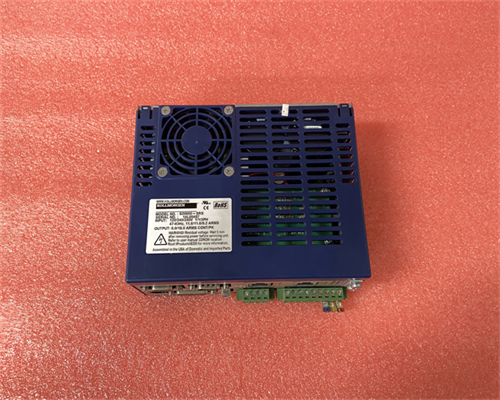

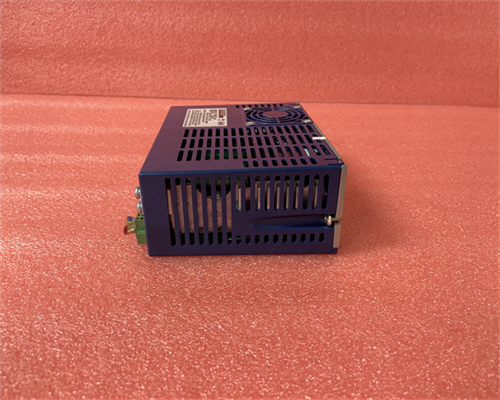

The Kollmorgen S20660 is an AC Servo Drive Module designed for controlling AC brushless servo motors in industrial automation applications.  Here's a breakdown of its functionalities:

  • Power Conversion: It converts AC line voltage (typically single or three-phase) into the appropriate DC voltage and current levels required by the AC brushless servo motor.
  • Motor Control: It receives control signals from a motion controller and uses these signals to regulate the speed, torque, and position of the connected motor. This allows for precise and controlled motion of the machinery driven by the motor.
  • Feedback Integration: It likely integrates with feedback devices like encoders to monitor the actual motor speed and position. This feedback loop allows the drive to adjust its control signals for accurate motion control.
  • Safety Features:  It likely incorporates safety features to prevent malfunctions or accidents, such as overload protection and fault detection for the motor.

Here are some resources where you can learn more about the Kollmorgen S20660:

  • Kollmorgen Website: Kollmorgen's website likely has resources on the S20660 series, including datasheets, user manuals, and application notes: [invalid URL removed]
  • Third-Party Automation Suppliers: Several online retailers and industrial parts suppliers sell Kollmorgen servo drives and replacement parts.  These listings may include some technical specifications for the S20660:
    • https://www.ebay.com/itm/165428038040
    • https://shop.i-automation.com/products/S20660-SRS

The Kollmorgen S200 series, which likely includes the S20660, offers various features depending on the specific model variant. Here are some additional details you might find based on the model number:

  • Single-phase or Three-phase Input: The "2" in S20660 might indicate a two-phase (single-phase) input, while other models might have a "3" for three-phase input. Refer to the datasheet for confirmation.
  • Power Rating: The datasheet will specify the motor power that the S20660 can handle.
  • Communication Protocols: The drive likely supports communication protocols for connecting to motion controllers and other devices within the automation system.

If you have the specific model variant identifier for your S20660 (e.g., S20660-xxx), the resources mentioned above will provide the most accurate information on its functionalities and specifications.
