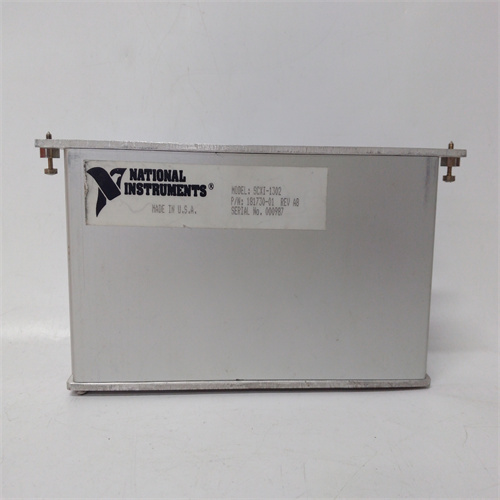

SCXI-1302 NI 产品描述（中文）：

SCXI-1302是National Instruments（简称NI）的一款基于SCXI总线的多功能数字I/O模块。该模块提供了32个高速、可编程的数字I/O通道，支持TTL和CMOS电平，并且每个通道都可以独立配置。SCXI-1302具有出色的性能，包括快速的响应时间和低延迟，非常适合需要高速数字信号处理的应用，如工业控制、测试测量以及数据采集等。此外，其紧凑的设计和易于集成的特性使得它成为SCXI系统中的理想选择。

SCXI-1302 NI 产品参数（中文）：

数字I/O通道数：32路
信号电平：TTL、CMOS
最大工作频率：20MHz
输入电压范围：TTL: 0V至+5V，CMOS: -0.5V至+5.5V
输出电压范围：TTL: 0V至+5V，CMOS: -0.5V至+5.5V
电源：+5VDC

SCXI-1302 NI 产品规格（中文）：

外形尺寸：100mm x 100mm
重量：150g
工作温度：-20°C至70°C
存储温度：-40°C至85°C

Product Description (English):

The SCXI-1302 from National Instruments (NI) is a multifunction digital I/O module based on the SCXI bus. It provides 32 high-speed, programmable digital I/O channels, supporting TTL and CMOS levels, with each channel configurable independently. The SCXI-1302 excels in performance, offering fast response times and low latency, making it ideal for applications that require high-speed digital signal processing such as industrial control, test and measurement, and data acquisition. Its compact design and ease of integration make it an ideal choice for SCXI systems.

Product Parameters (English):

Number of Digital I/O Channels: 32
Signal Levels: TTL, CMOS
Maximum Operating Frequency: 20MHz
Input Voltage Range: TTL: 0V to +5V, CMOS: -0.5V to +5.5V
Output Voltage Range: TTL: 0V to +5V, CMOS: -0.5V to +5.5V
Power Supply: +5VDC

Product Specification (English):

Dimensions: 100mm x 100mm
Weight: 150g
Operating Temperature: -20°C to 70°C
Storage Temperature: -40°C to 85°C
