TRICONEX 3101 产品说明

中文说明

3101 TRICONEX是Honeywell(原Invensys)公司生产的Triconex系列安全仪表系统(SIS)的核心组件之一。它是一款高性能的冗余主处理器模块，设计用于构建高度可靠和安全的控制系统。3101模块在3061E模块的基础上进行了进一步升级，具有更强大的处理能力、更大的内存和更丰富的功能，能够处理更复杂的控制任务和支持更多的I/O。3101模块广泛应用于石油化工、电力、冶金等行业，为各种安全关键型应用提供可靠的安全保障。

英文说明

The 3101 TRICONEX is one of the core components of the Triconex series of safety instrumented systems(SIS)produced by Honeywell(formerly Invensys).It is a high-performance redundant main processor module designed to build highly reliable and safe control systems.The 3101 module is a further upgrade of the 3061E module,featuring more powerful processing capabilities,larger memory,and richer features,enabling it to handle more complex control tasks and support more I/Os.The 3101 module is widely used in the petrochemical,power,and metallurgy industries,providing reliable safety for various safety-critical applications.

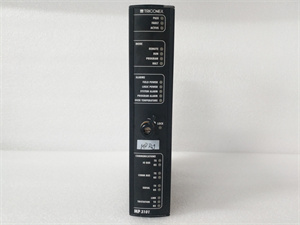

[caption id="attachment_118119" align="aligncenter" width="600"] TRICONEX 3101[/caption]

产品参数、规格与系列

中文参数

系列:Triconex

类型:冗余主处理器模块

处理器:双处理器架构(具体型号根据版本而定，通常采用更先进的处理器)

内存:大于3061E模块

通信接口:TriBus,串口,其他扩展接口(如以太网、PROFINET等)

电源:根据系统配置而定

环境温度:-20℃至+60℃

尺寸:根据系统配置而定

英文参数

Series:Triconex

Type:Redundant main processor module

Processor:Dual-processor architecture(specific model depends on version,typically using more advanced processors)

Memory:Larger than 3061E module

Communication interfaces:TriBus,Serial port,other expansion interfaces(such as Ethernet,PROFINET,etc.)

Power supply:Depends on system configuration

Ambient temperature:-20°C to+60°C

Dimensions:Depends on system configuration

注:具体参数规格请参考产品数据手册。由于3101模块有多个版本，具体参数可能略有差异。

[caption id="attachment_118120" align="aligncenter" width="600"] TRICONEX 3101[/caption]

产品特征

中文特征

高可靠性:双处理器冗余设计，保证系统在发生故障时仍能正常运行。

高安全性:符合相关安全标准，适用于安全关键型应用。

高性能:处理能力强大，支持复杂的控制算法和大量的I/O。

模块化设计:易于扩展和维护。

灵活配置:可根据不同应用需求进行配置。

丰富的I/O接口:支持多种I/O模块。

先进的通信功能:支持多种工业协议，方便与其他系统集成。

英文特征

High reliability:Dual-processor redundancy design ensures continued operation even in the event of a failure.

High safety:Complies with relevant safety standards,suitable for safety-critical applications.

High performance:Powerful processing capabilities,supporting complex control algorithms and a large number of I/Os.

Modular design:Easy to expand and maintain.

Flexible configuration:Can be configured to meet different application requirements.

Rich I/O interfaces:Supports a variety of I/O modules.

Advanced communication capabilities:Supports multiple industrial protocols for easy integration with other systems.

产品作用与用途

中文作用与用途

3101 TRICONEX模块作为Triconex系统的核心，主要负责以下功能：

执行控制程序:根据用户编写的控制逻辑，对过程变量进行控制。

处理I/O数据:收集来自I/O模块的现场数据，并向执行机构输出控制信号。

实现安全联锁:防止危险事件发生，保证系统安全。

提供诊断功能:监测系统运行状态，及时发现故障。

支持高级功能:如故障诊断、历史数据记录、远程维护、资产管理等。

英文作用与用途

As the core of the Triconex system,the 3101 TRICONEX module is primarily responsible for the following functions:

Executing control programs:Controls process variables according to user-written control logic.

Processing I/O data:Collects field data from I/O modules and outputs control signals to actuators.

Implementing safety interlocks:Prevents hazardous events from occurring,ensuring system safety.

Providing diagnostic functions:Monitors system operating status and detects faults in a timely manner.

Supporting advanced features:Such as fault diagnosis,historical data recording,remote maintenance,asset management,etc.

应用领域

中文应用领域

3101 TRICONEX模块广泛应用于石油化工、电力、冶金、石化等行业，用于构建安全仪表系统，例如：

高压保护:监测并控制高压设备，防止过压、欠压等危险情况。

泄漏检测与报警:检测并报警有毒有害气体的泄漏。

防火防爆:监测并控制火灾和爆炸危险，提供紧急停机功能。

过程控制:实现对复杂过程的精确控制。

英文应用领域

The 3101 TRICONEX module is widely used in the petrochemical,power,metallurgy,and petrochemical industries to build safety instrumented systems,such as:

High-pressure protection:Monitors and controls high-pressure equipment to prevent overvoltage,undervoltage,and other hazardous conditions.

Leak detection and alarm:Detects and alarms leaks of toxic and harmful gases.

Fire and explosion protection:Monitors and controls fire and explosion hazards,providing emergency shutdown functions.

Process control:Achieves precise control of complex processes.
